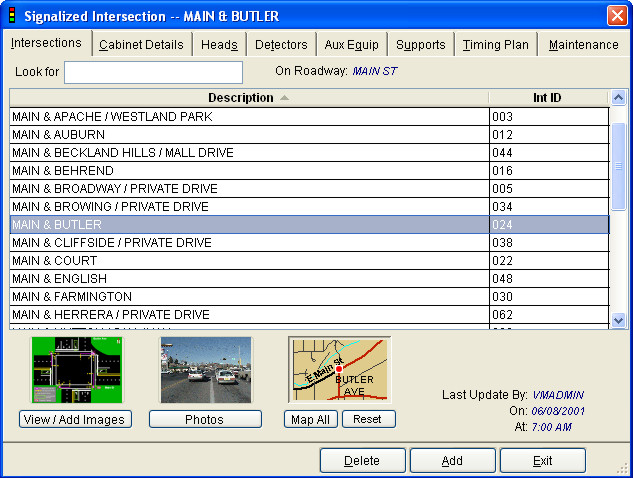

When the Signal Manager^® Icon is selected from the VIMMS^® Main Tool Bar, a list of defined signalized intersections will be displayed. When an Intersection Record is highlighted on this Page Tab, its record details can be viewed by clicking on the other Page Tabs to the right of the List Tab.

A thumbnail image on the bottom left depicts a plan view of the intersection along with many common components including: detector loops, signal heads, mast arms, steel poles and even the controller cabinet. Also, a thumbnail is provided for photos of each leg of the intersection. In addition, Map Manager™ provides a thumbnail image which displays the location of the highlighted signalized intersection.
